Miko Permanent Underwater Magnets

MPM series

The MPM-series magnets are made up of Neodymium, giving them each a 60kg holding force. In addition, the magnets are epoxy-coated for corrosion resistance in sea water.

The MPM magnets come in several variants.

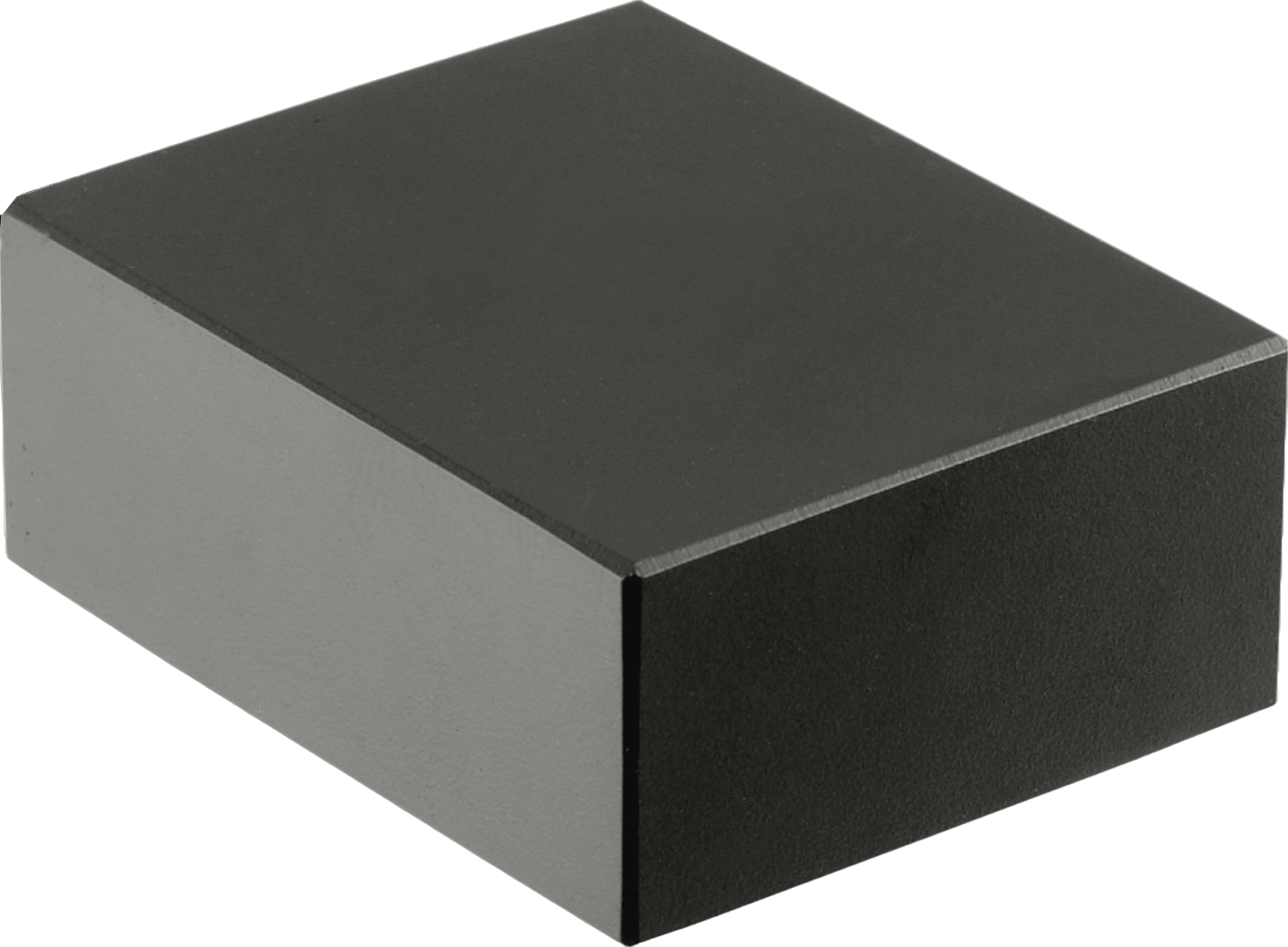

MPM-001

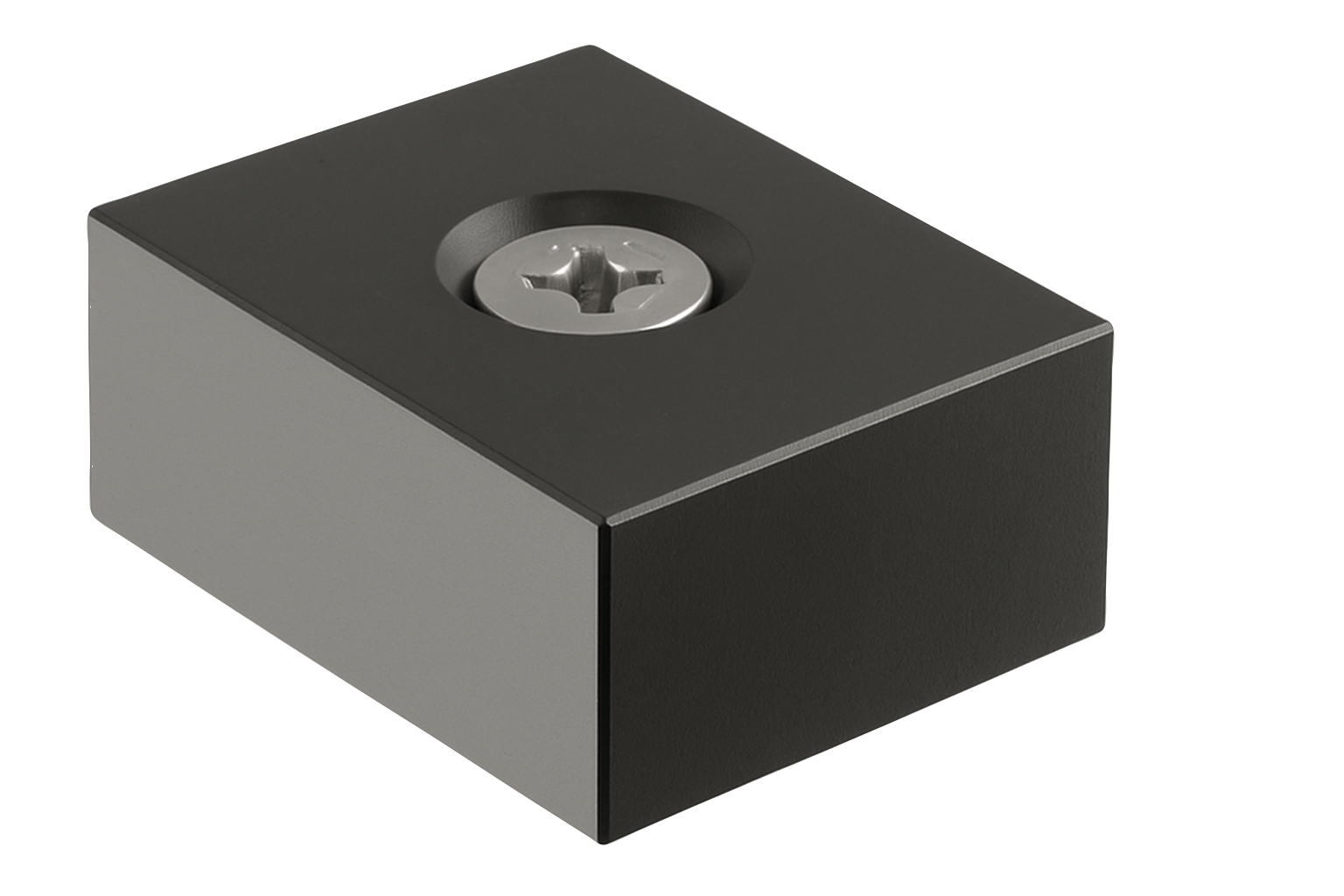

MPM-001 CS
MPM-002

Each magnet is individually packed in a custom storage and handling case with a pin-lock mechanism, allowing for safe and practical handling.

All Miko magnets are shipped in a double-skin steel box to shield off the magnetic field and prepare it for air freight. Send enquiry for more information.

Mechanical properties

Holding force*	60 kg
Footprint	50 x 40 mm
Height	20 mm
Weight	0.30 kg
Gross weight	7 kg
Box quantity	10 pcs
Air freight	Unrestricted
MPM-001 CS
Countersunk screw	M8 x 30 mm
MPM-002
Flange	5 x 5 mm
Compatible tool	MHT-002

*perpendicular holding force on a clean mild steel plate of minimum thickness 10 mm

Downloads

Product Data Sheet
